FIRST COMPASS USED IN SHIP NAVIGATION

• A magnetized iron needle was rubbed with lodestone to create magnetic polarity. • The needle was placed on a small piece of cork, reed, or bamboo, allowing it to float freely. • This setup was placed in a bowl of water, reducing friction and stabilizing the movement. • The needle consistently aligned north–south, giving sailors a reliable reference during voyages. • This simple device became the earliest form of a marine water compass. When It Was Used • First appeared in 11th–12th century China during the Song Dynasty. • Adopted soon after by Arab navigators through trade routes. • Reached Europe by the 12th–13th century, widely used by Mediterranean and Atlantic sailors. • Became the foundation of early long-distance voyages across Asia, the Middle East, and Europe. Why It Was the First Marine Compass • It was the first design stable enough to function on a moving ship, even during waves. • Provided direction when skies were cloudy, foggy, or stormy, when celestial navigation was impossible. • Allowed sailors to maintain a steady course in open ocean, not just coastal waters. • Its simplicity made it cheap, easy to build, and highly reliable for early maritime cultures. • This tool marked the beginning of true open-sea navigation, eventually evolving into the dry compass and modern gyrocompass.

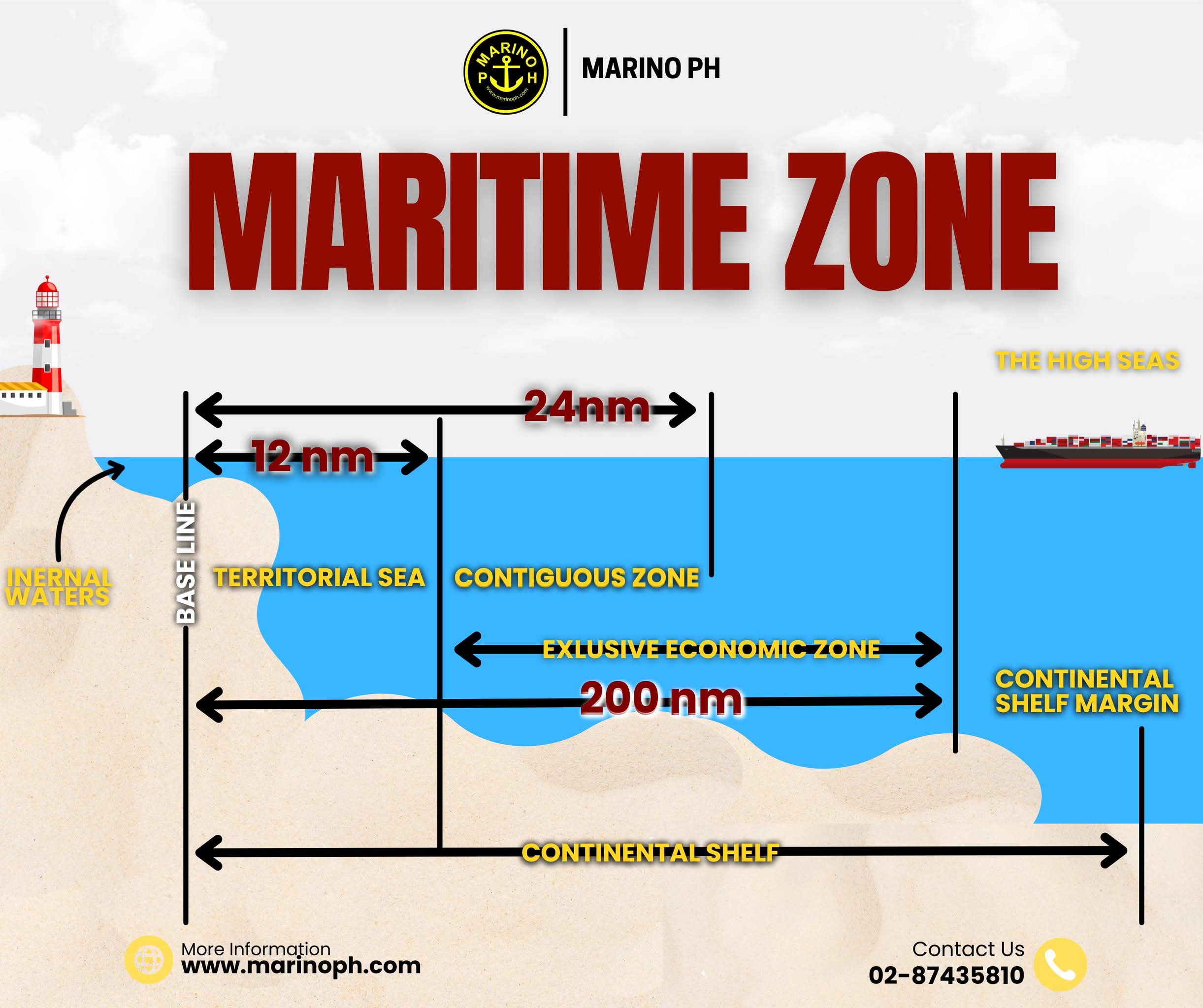

Maritime Zones Explained: The Boundaries of Our Seas

The concept of maritime zones is a cornerstone of international maritime law, defined primarily by the United Nations Convention on the Law of the Sea (UNCLOS). These zones determine the extent of a coastal state’s rights, responsibilities, and jurisdiction over the waters and resources adjacent to its shores. Background • Maritime zones were established to resolve disputes over navigation, resource ownership, and national security. • Boundaries are measured from a country’s baseline (usually the low-water mark along the coast). • The key zones include: • Internal Waters – full sovereignty like land territory. • Territorial Sea – up to 12 nautical miles. • Contiguous Zone – up to 24 nautical miles. • Exclusive Economic Zone (EEZ) – up to 200 nautical miles. • Continental Shelf – may extend beyond 200 nautical miles depending on natural features. Purpose • Internal Waters – treated like land territory, full state control. • Territorial Sea (12 nm) – authority over navigation, resources, and law enforcement. • Contiguous Zone (24 nm) – enforcement against smuggling, illegal entry, and security threats. • Exclusive Economic Zone (200 nm) – exclusive rights to explore and exploit resources (fish, oil, gas). • Continental Shelf – rights over seabed resources even beyond EEZ. Importance • Safeguards national security and territorial sovereignty. • Ensures sustainable use of marine resources (fisheries, oil, gas). • Provides control over shipping routes and trade lifelines. • Strengthens sovereignty in disputed waters (vital for nations like the Philippines). • Globally, reduces conflict, promotes order and cooperation, and protects the marine environment.

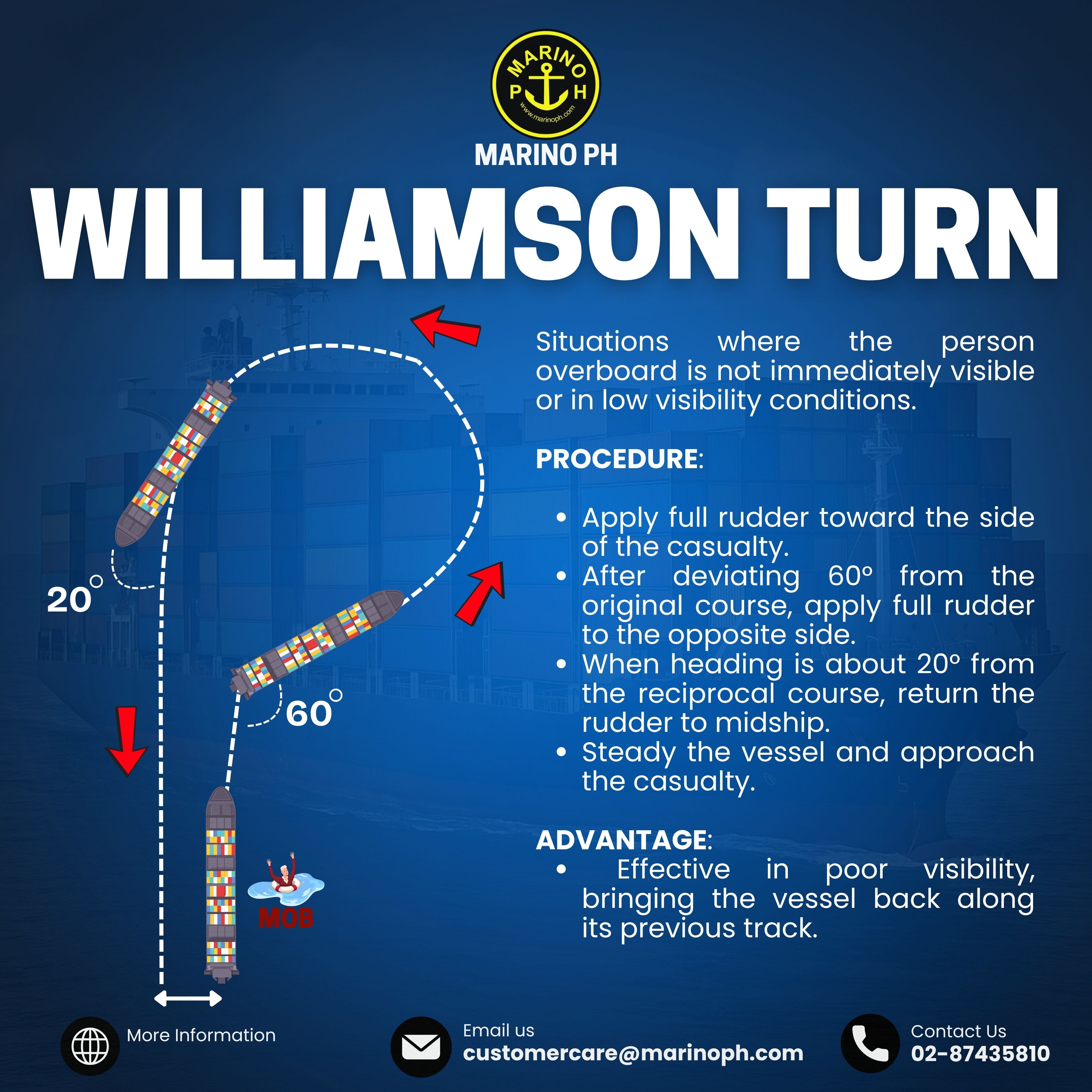

WILLIAMSON TURN

The Williamson Turn is a maneuver used to reverse the course of a vessel and return along its original track. It is primarily applied during Man Overboard (MOB) situations, especially when the exact position of the casualty is uncertain or when visibility is poor, such as at night or in fog. Purpose: • To bring the ship back onto its previous course line, improving the chance of relocating the person who fell overboard. • Ensures the vessel returns to the point of incident efficiently and safely. • Helps maintain visual and navigational reference in low-visibility conditions. Procedure: 1. Apply full rudder toward the side where the person fell overboard. 2. Allow the vessel to deviate 60° from its original course. 3. Shift full rudder to the opposite side. 4. Continue the turn until the vessel is heading about 20° from the reciprocal (opposite) course. 5. Return rudder to midships. 6. Steady the vessel on the reciprocal course and proceed back along the original track to search for and recover the casualty.

Mooring Line Arrangements: Everything You Need to Know!

Mooring lines are vital for securing a vessel to a fixed structure, such as a dock or pier, ensuring stability and safety against environmental forces like wind, waves, and currents. Whether you're a seasoned mariner or a cadet, understanding the types and uses of mooring lines is essential for safe operations. Types of Mooring Lines and Their Purposes: ⁍ Head Lines These lines extend from the bow (front) of the ship at an angle to the dock. Their primary job is to prevent the ship from moving backward and keep the bow steady near the dock. ⁍ Stern Lines Stern lines are led from the stern (back) of the ship at an angle to the dock. They ensure the stern remains secure and prevent forward movement. ⁍ Breast Lines Breast lines run nearly perpendicular to the ship, connecting it to the dock at a 90-degree angle. These lines hold the vessel close to the dock, countering forces that could pull it away, like tides or strong winds. ⁍ Spring Lines These lines run almost parallel to the ship’s hull and are crucial for preventing longitudinal movement. Forward Spring Lines: Stop the ship from drifting backward. Aft Spring Lines: Prevent the ship from moving forward. Materials Used for Mooring Lines: ⁍Synthetic Fibers Common materials: Nylon, Polyester, and Polypropylene. Benefits: Lightweight, durable, resistant to wear, and able to absorb shock loads. ⁍ Wire Ropes Made from high-tensile steel, these ropes are incredibly strong and ideal for large ships operating in tough environments. Downsides: Require frequent maintenance and are less flexible compared to synthetic ropes. ⁍ Natural Fibers Traditional materials like manila and sisal. Pros: Biodegradable. Cons: Susceptible to rot and less durable compared to synthetic options. Why Are Mooring Lines So Important? ⁍Proper mooring arrangements are critical for: ⁍Keeping the vessel stationary during cargo operations. ⁍Preventing accidents caused by drifting due to tides, waves, or weather. ⁍Ensuring the safety of the crew, the vessel, and the environment. ⁍Pro Tip: Regular inspection of mooring lines is essential to prevent failures. Always check for wear and tear, fraying, or weakening of the ropes, especially in synthetic and natural fibers. Quick Safety Reminder: Mooring operations can be dangerous. Always: ⁍Follow your ship's safety procedures and guidelines. ⁍Keep clear of snapback zones. ⁍Use proper personal protective equipment (PPE) during mooring.
